Description

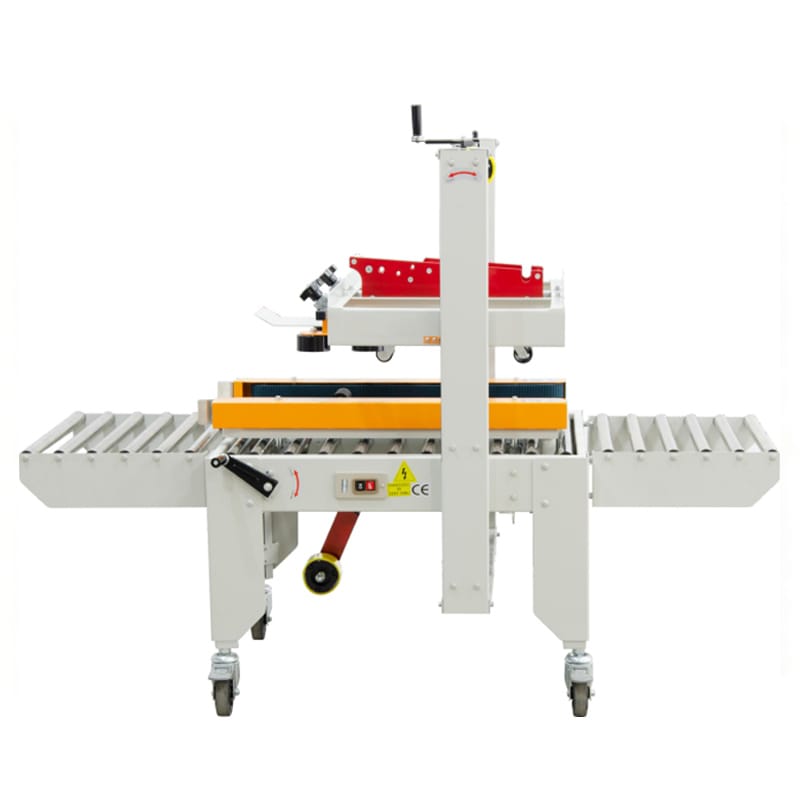

This sealer adopts dual-side belt drive and instant adhesive tape for top and bottom sealing. It operates fast and stably, delivering flat, standard and neat sealing results. The machine’s width and height can be manually adjusted according to different carton sizes, ensuring simple and convenient operation. It is widely used in industries including food, pharmaceuticals, toys, tobacco, daily chemicals, electronics and more.
| Specification | Parameter |
|---|---|
| Conveyor Speed | 18 m/min |
| Carton Size Range | L: 150-∞ mm, W: 150-500 mm, H: 120-500 mm |
| Power Supply | 220V, 50/60Hz, 1 Phase |
| Power | 240W |
| Tape Width | 65-75 mm (optional) |
| Working Table Height | 600±150 mm |
| Machine Dimensions | L: 850 mm, W: 850 mm, H: 1350 mm (excluding front and rear roller racks) |
| Machine Weight | 125 kg |
Fast Tape Loading Design
Simply grip the tape arm to easily remove the core, then install new tape quickly. Operation is simple and convenient.
Simply grip the tape arm to easily remove the core, then install new tape quickly. Operation is simple and convenient.
Durable Conveyor Belt
Made of high-friction conveyor belt material, thick and durable, ensuring stable conveying.
Made of high-friction conveyor belt material, thick and durable, ensuring stable conveying.
Premium Configuration, Stable & Durable
Selected high-performance motor ensures stable and smooth carton sealing operation.
Selected high-performance motor ensures stable and smooth carton sealing operation.
Power Switch
Cost-effective power switch with one-touch start, easy to identify and use.
Cost-effective power switch with one-touch start, easy to identify and use.
Wall-mounted Roller Conveyor
Wall-mounted roller design for easy disassembly and no floor space occupation.
Wall-mounted roller design for easy disassembly and no floor space occupation.
Side Pressure Wheels
Side pressure wheels on both sides keep carton openings tight and flat during straight-line sealing.
Side pressure wheels on both sides keep carton openings tight and flat during straight-line sealing.
Independent Width & Height Adjustment
Manually adjust width and height according to carton specifications for simple, convenient operation.
Manually adjust width and height according to carton specifications for simple, convenient operation.
Sealing Performance
Tape adheres firmly to cartons, no skew, no bubbles, for a neat and professional finish.
Tape adheres firmly to cartons, no skew, no bubbles, for a neat and professional finish.
Product Configuration
| Component Name | Brand |
|---|---|
| Motor | Taibang |
Warm Notice
Our products are subject to continuous updates and upgrades. Please refer to the formal contract for details. No prior notice will be given. We appreciate your understanding.
Optional accessories and configurations are available as required. Please contact our customer service for more information.
