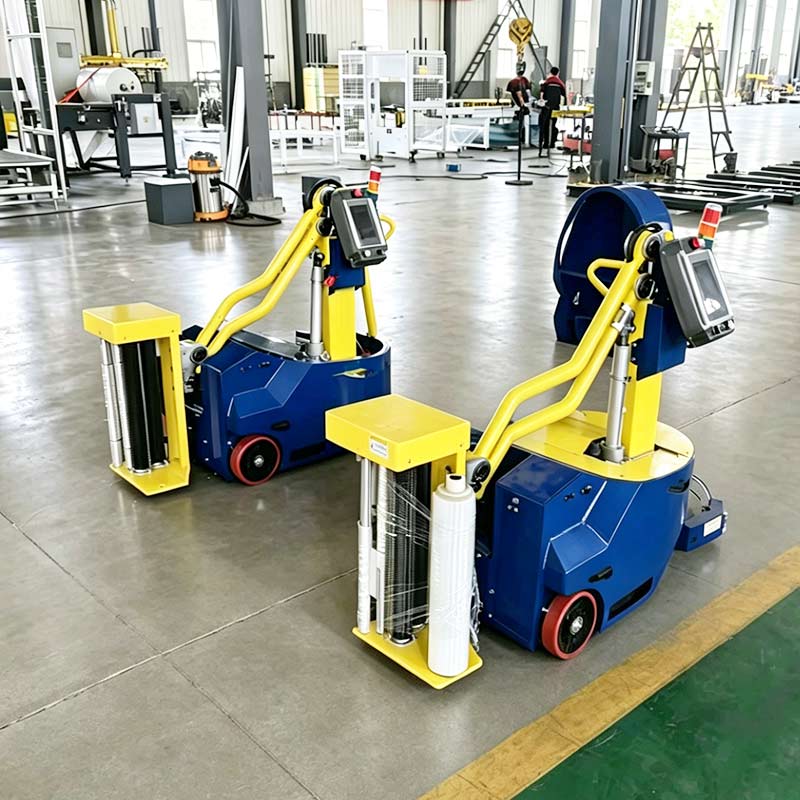

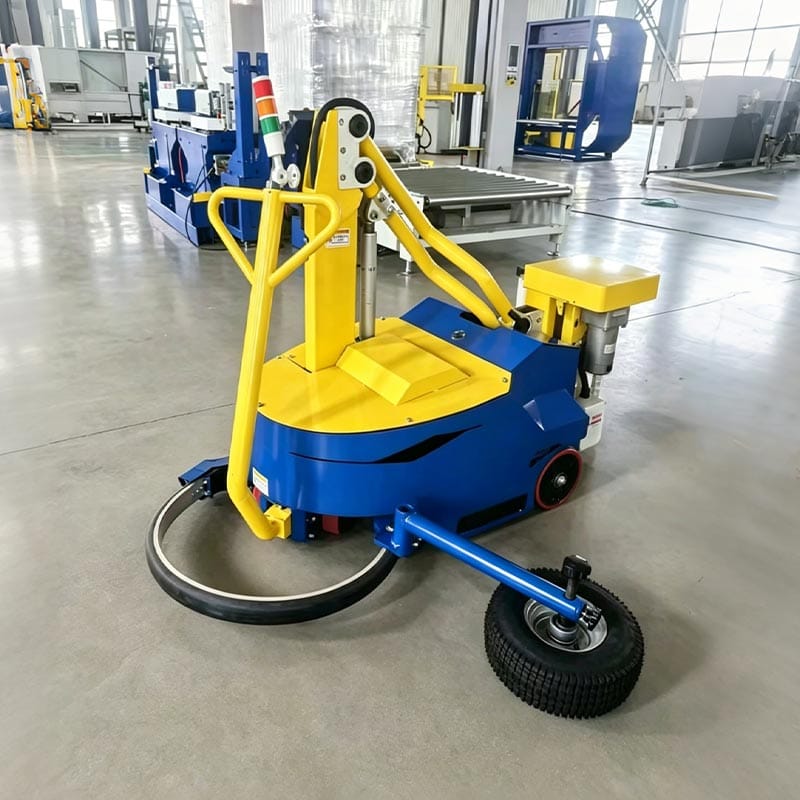

Self-propelled Curved Arm Wrapping Machine

Flexible Mobile Operation: No fixed site limit, freely move to wrap goods at any position, suitable for various warehouse layouts.
Curved Arm Stable Wrapping: Reasonable curved arm structure ensures smooth winding, even film covering without loose wrapping.
Wide Applicability: Fit for pallets of different sizes, ideal for irregular goods and narrow working space packaging.
High Efficiency & Labor Saving: Easy to operate, one person can finish wrapping work, greatly improve packaging speed.
Adjustable Wrapping Parameters: Freely set wrapping layers, film tension and speed to meet diverse packing demands.

REQUIREMENT CONSULTATION
We begin with understanding your needs, goals, and budget to develop a clear and strategic construction plan.
SOLUTION DESIGN & QUOTATION
Our team creates a custom machine proposal, including conveyor dimensions, electrical specs, and your preferred equipment color.
PRODUCTION & QUALITY CHECK
We manufacture your machine with strict quality control, ensuring it meets all agreed parameters and performance standards.
DELIVERY & AFTER-SALES SUPPORT
We deliver the equipment on schedule, with installation guidance, training, and ongoing support to keep your line running smoothly.

Description

Item	Specification
Model	ML-ZP-01
Control Panel	On machine vertical side
Load Capacity	Unlimited
Battery Capacity	120Ah (parallel connection)
Wrapping Quantity per Full Charge	~250 pallets
Travel Speed	Variable frequency speed control
Machine Voltage	220V / 50Hz
Wrapping Height	600-2000mm
Minimum Packing Size	L800 × W800 × H600mm
Stretch Ratio	100-250%
Packing Efficiency	20-30 pallets/hour
Control System	PLC programmable control system
Battery Charging Time	6-8 hours
