Description

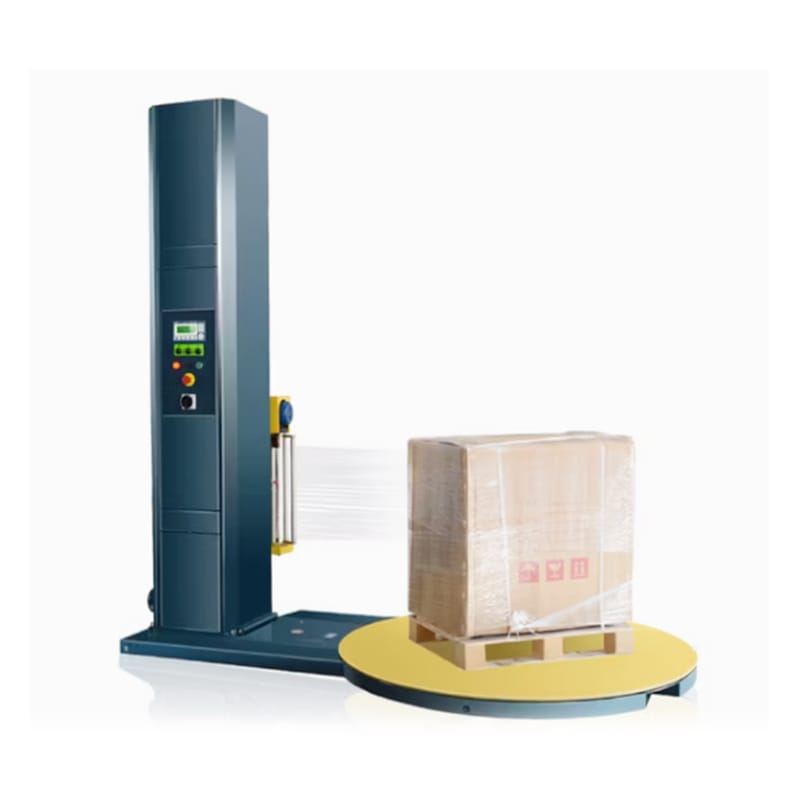

Pallet stretch wrapper is also known as pallet wrapping machine, film wrapping machine and stretch film packaging machine. It drives pallet goods to rotate via turntable operation to complete automatic wrapping packaging, widely applied to palletized cargo packing.
Model selection is mainly based on customer cargo sizes, mainly adjusting turntable and column dimensions. Common turntable sizes: 1650/1800/2000/2400mm. Standard column heights: 2000/2400/2800/3200mm.
| Item | Specification |
|---|---|
| Model No. | ML-TP1650F |
| Turntable Diameter | 1650mm |
| Load Size | (500-1200)mm × (500-1200)mm (L×W) |
| Packing Height | 2000mm / 2400mm / 2800mm |
| Packing Efficiency | 20-40 loads/hour |
| Turntable Speed | 3-12rpm, variable frequency adjustable |
| Optional Turntable Diameter | 1650 / 1800 / 2000 / 2200 / 2400 / 2600mm |
| Turntable Height | 85mm (Base frame: 100×120×4 square tube; Reinforcing plate thickness: 10mm) |
| Turntable Load Capacity | 2000KG / 3000KG |
| Film Carriage System | Pre-stretch film carriage, max pre-stretch ratio up to 250%, automatic film feeding, variable frequency speed control |
| Lifting Column | Adjustable lifting speed, adopting 10A double chain drive |
| Control System | PLC control with touch screen display; adjustable wrapping layers/cycles; automatic turntable reset; automatic goods height detection |
| Column Cabinet | Wall thickness 1.5mm; upper/lower plate 6mm; inner reinforcing plate 6mm; width 400mm |
| Machine Weight | 650KG |
| Overall Dimension | 2550mm × 1650mm × 2485mm |
| Power/Voltage | 1.5KW AC220V/50HZ |
| Optional Accessories | Top press device / weighing device / height extension / heavy-duty version |

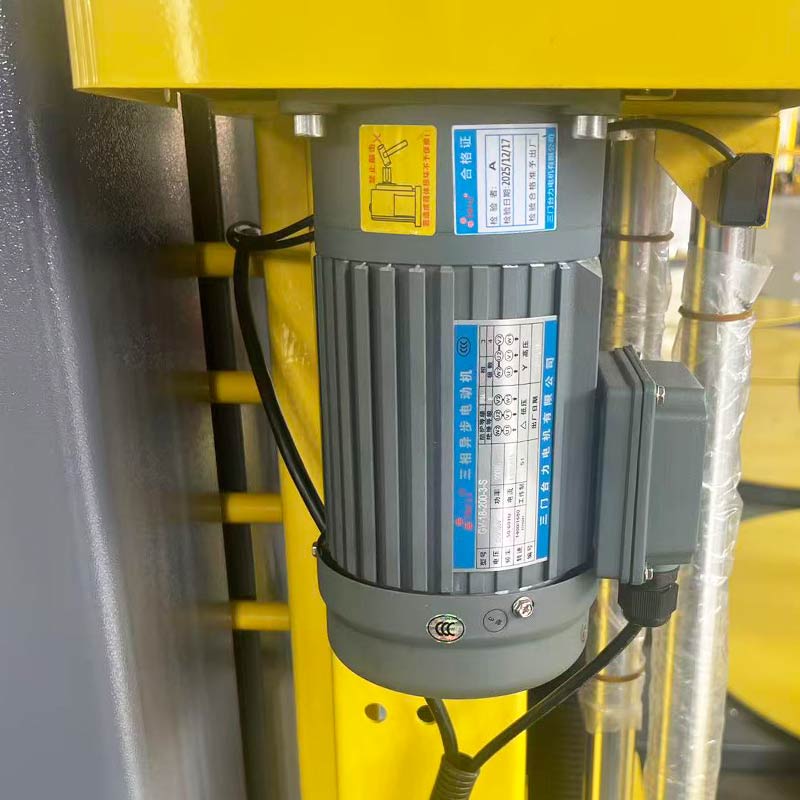

- Column：The component that drives the film carriage up and down, mainly consisting of a drive motor, chain transmission, and guide rail support system.
- Control System：Composed mainly of PLC, frequency converter, relays, sensors, and control buttons.

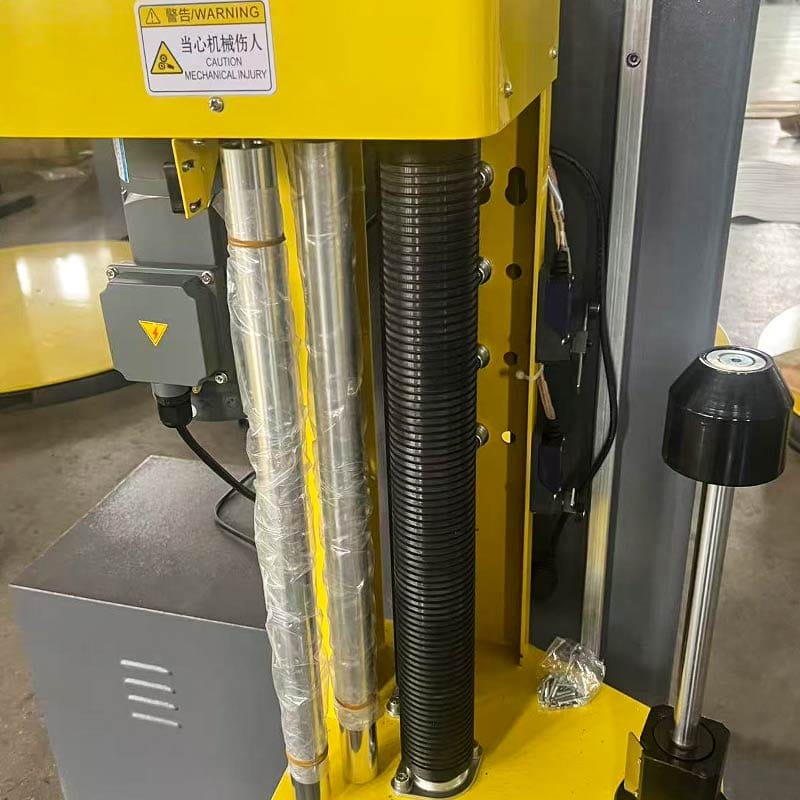

- Film Carriage：The film-dispensing unit, mainly consisting of a drive motor, gear transmission, and bearing support system.
- Turntable：The rotating platform for placing goods, mainly consisting of a drive motor, chain transmission, and bearing support system.
Product Features & Benefits
- 8 sets of high-strength nylon support rollers
- Support plate with thickness of 10mm
- 12A heavy-duty chain and large gear
- 10mm thick circular plate
- Fabricated via laser cutting, bending and welding
- Touch screen operation with knob speed regulation
- Chinese and English language switching
- One-click start after parameter setting, automatic stop upon completion
- Password protection function, effective for credit management

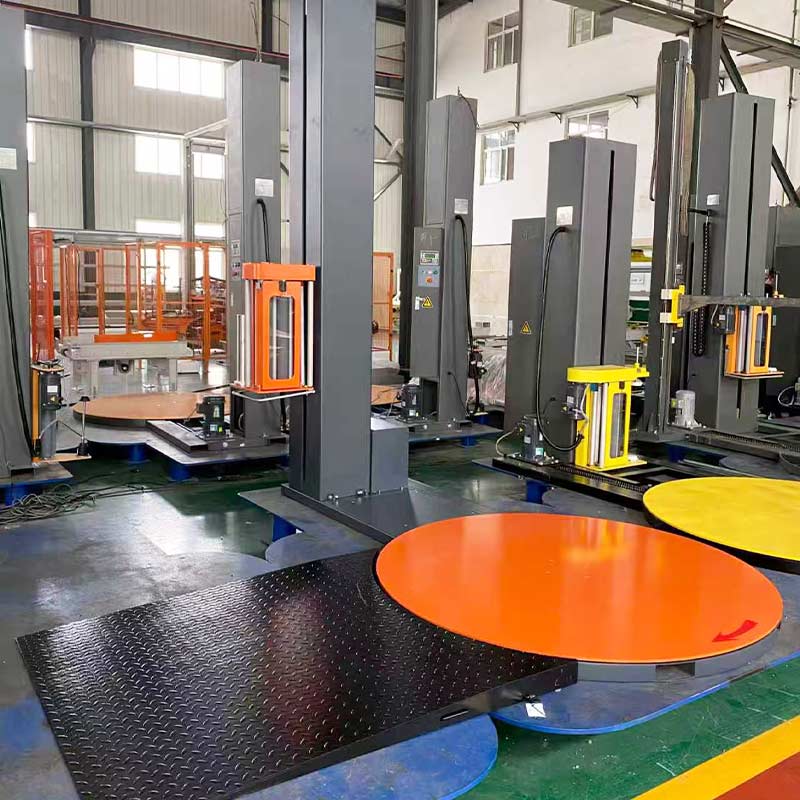

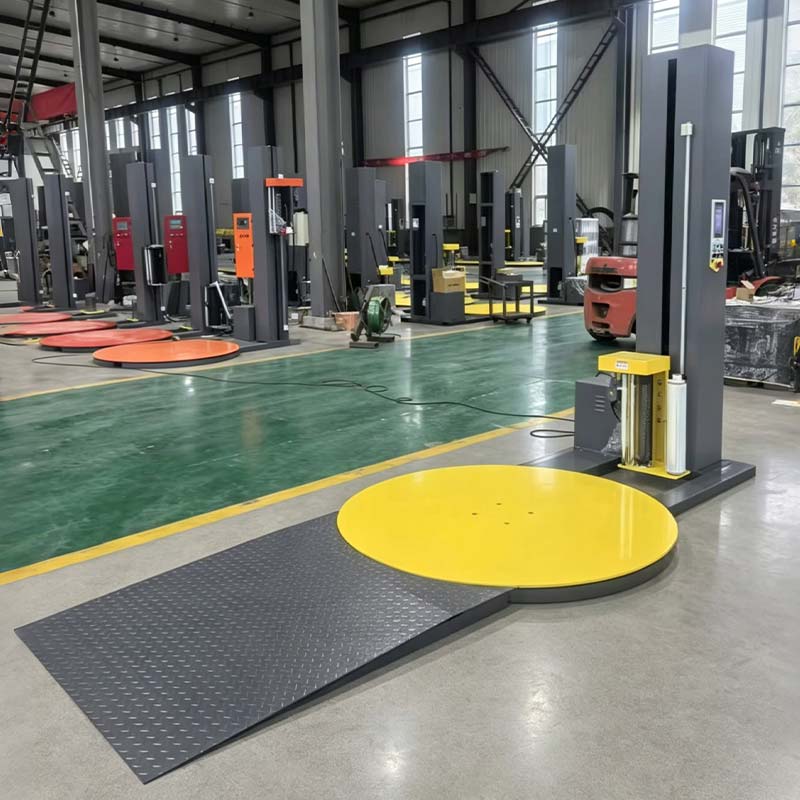

- Optional top pressing, weighing, automatic film cutting, ramp and pit installation configurations
